Script Cmd: FILE


FILE -V {sub-command} {filename} [args] ...

This command is useful for interfacing to a file. It supports a variety of different sub-commands that will perform some action on the specified file.

Options:

-V {varname}    override the default use of the 'FILE' shell variable to store the result.
                           (note for all references to 'FILE' shell variable below, this option overrides that name)

Current sub-commands supported:

append-
Syntax: FILE append {filename} {line of text}
Append the line of text to the end of the specified file. Note that if the line contains any whitespace, then it must be enclosed within double-quotes. If the file exists the line is appended to the existing file; else the file is created.

appendf-
Syntax: FILE appendf {filename} {line of text}
Similar to 'append', but the {line of text} is scanned for formatting characters (see Note1 below), and the file open/write/close is done in binary mode.

appendv
-

Syntax: FILE appendv {filename} {shellvar-name}
Similar to 'append', but the content of the shell variable is put into the file.  This is primarily useful with the variable RECVBLOCK when it is excessively long (longer than the size of uCon's command line buffer).

basename-
Syntax: FILE basename {filename}
Populate the shell variable FILE with the string within <}>immediately following the last slash or backslash. If no slash or backslash is present in the <}>then FILE will be populated with the full filename.

copyscreen
-

Syntax: FILE copyscreen {filename}
Transfers the current screen buffer to the specified file.

copy-
Syntax: FILE copy {src_filepath} {dest_filepath}
Copy source to destination.

crc-
Syntax: FILE crc {filepath}
Store calculated CRC32 value in shell variable 'FILE'.

delete
-

Syntax: FILE delete {filename}
Delete the specified file.

d2u-
Syntax: FILE d2u {filename}
Convert ascii-text file from DOS format to Unix.

dump-
Syntax: FILE dump {filename} [size] [offset]
Dump the specified file (or some portion of it) to the console.

edit
-

Syntax: FILE edit {filename}
Open the specified file using the configured editor.

first
-

Syntax: FILE first {dirname\expression}
This command will use the FindFirstFile() function to retrieve the first file in the directory specified whose name matches the expression specified. For example: find first C:\windows\media\*.wav will return the first .wav file found in C:\windows\media. The resulting filename is placed in the $FILE shell variable. If no file is found, the FILE shell variable is removed.

fstat
-

Syntax: FILE fstat {filename}
Populate the FILE shell variable with "FILE" if filename is a file, "DIR" if filename is a directory, and "NULL" if it doesn't exist.

hexdump-
Syntax: FILE hexdump {filename} [size] [offset]
Dump (in ascii-coded-hex format) the specified file (or some portion of it) to the console.
Note: if specified 'size' is zero, the whole file is printed.

httpget-

Syntax: FILE httpget {http://srvrname/file_path_here} [local_dest_filepath]
If '
local_dest_filepath' is specified, then copy http-source-file to destination.
If '
local_dest_filepath' is not specified, then simply verify presence of file.
In either case, the FILE shell variable is loaded with the size of the http file, so if the file does not exist, $FILE will be zero.

line-
Syntax: FILE line {filename} NN
Populate the FILE shell variable with the NNth line within the assumed-to-be text file.

lntot
-

Syntax: FILE lntot {filename}
Populate the FILE shell variable with the number of lines contained in the assumed-to-be text file.

md5
-
Syntax: FILE md5 {filepath}
Store calculated MD5SUM value in shell variable 'FILE'.

mkdir-
Syntax: FILE mkdir {path}
Create directory as specified by 'path'.

mktemp
-

Syntax: FILE mktemp {path/prefix}
Populate the FILE shell variable with a new filename created based on the specified path/prefix.

move-
Syntax: FILE move {src_filepath} {dest_filepath}
Move file from source to destination.

next-
Syntax: FILE next
After running "file first" to retrieve the first file of the directory, this command is used to retrieve all subsequent files matching the same specification. The resulting filename is placed in the $FILE shell variable. If no file is found, the FILE shell variable is removed.

rmdir-
Syntax: FILE rmdir {path}
Remove the directory specified by 'path'.

size-
Syntax: FILE size {filename}
Populate the FILE shell variable with the size of the file if present, else "NULL".

strstr
-

Syntax: FILE strstr {filename} {string} [occurrance]
Two shell variables are loaded with this command (FILE & LINE)...
If the string is found in the file, then populate FILE with "YES" and LINE with the linenumber it was found on.
If the string was not found in the file, then populate FILE with "NO" and clear the LINE shell variable.
If the second (optional) argument 'occurrance' is specified, then search for the 'Nth' occurrance of the string instead of the first.

token
-

Syntax: FILE token {filename} {token_num} {line_num} [token-delimiter]
Populate the FILE shell variable  with the specified token on the specified line of the file. When no 'token-character' is specified, a token is considered to be any whitespace delimited character string.  If a 'token-delimiter' is specified, then that character is assumed to be the token delimiter and any text between delimiters (including whitespace) is included in the token.  The FILE shell variable may be populated with an error message if necessary...

_INTERNAL_ERROR_ indicates some internal failure (shouldn't happen).
_END_OF_FILE_ indicates that the line request was beyond the end of the file.
_END_OF_LINE_ indicates that the token request was beyond the end of the line.
_EMPTY_TOKEN_ (applicable only if delimiter is specified) inidcates that the token' slot is empty.

otherwise, it will contain the token.  See example below.
u2d-
Syntax: FILE u2d {filename}
Convert ascii-text file from Unix format to DOS.

what-

Syntax: FILE what {filename} {what-substring}
Search 'filename' for a 'what-string' that contains the string 'what-substring'.  If a 'what-string' containing the 'what-substring' is found, then it is stored in the shell variable 'FILE'.  A "what string" is a string in the file that is prefixed with a "@(#)".  This type of string is typically inserted by source code control; however, can be used in general within a binary image assuming the creator has the ability to insert the string.


Note1:
For the formatted append, the {line-of-text} is processed to convert \r, \n, \b, \t, \\ and \xXX.
Some examples:
Line of text: "hello" writes 5 characters to the file.
Line of text: "hello\r\n" writes the initial 5 characters followed by CRLF (7 characters total).
Line of text: "hello\n" writes the initial 5 characters followed by CR (6 characters total).
Line of text: "hello\r" writes the initial 5 characters followed by LF (6 characters total).
Line of text: "hello\x33" writes the initial 5 characters followed by '3' (because 0x33 = '3') (6 characters total).


Example using 'token' to parse a .csv file:

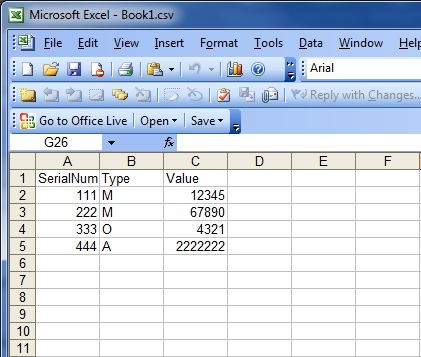

Assume you have an excel spread sheet (saved in .csv format) similar to this one...


The following script will parse that file:

# CSV_PARSE:
SET CSVFILE "C:/Users/Ed/Documents/Book1.csv"
SET ROWTOT 5
SET COLTOT 3
SET ROW 1
SET COL 1

# NEXTCOL:
FILE token "$CSVFILE" $COL $ROW ,
ECHO "${FILE}  \c"
SET COL=$COL+1
IF $COL le $COLTOT GOTO NEXTCOL
SET ROW=$ROW+1
ECHO ""
IF $ROW gt $ROWTOT GOTO CSV_DONE
SET COL=1
GOTO NEXTCOL

# CSV_DONE:
ECHO All done
EXIT

And generate this output at the uCon console:

SerialNum  Type  Value
111  M  12345
222  M  67890
333  O  4321
444  A  2222222
All done

This basic idea can be used to parse any size spreadsheet by simply modifying the ROWTOT/COLTOT values.
